Highlights

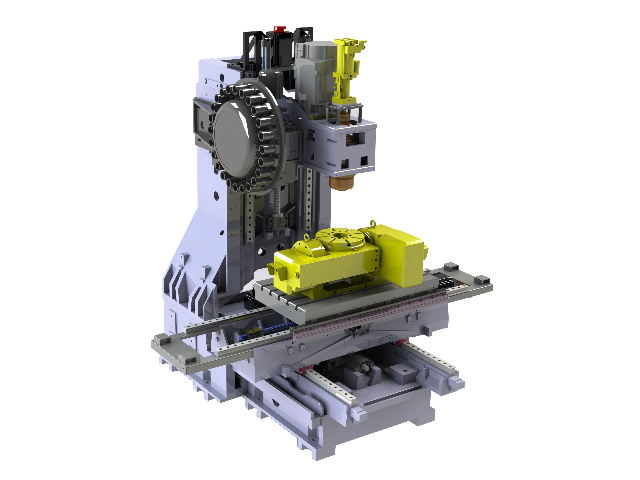

- Sophisticated, lean and high-rigidity machine structure
- Fem analysis for simulating various operating conditions and environmental changes
- Powerful three and five axis machining
-
Technical Data
Slide Traverse X axis 1600 mm Slide Traverse Y axis 850 mm Slide Traverse Z axis 850 mm Table Size Length 1700 mm Table Sixe Width 880 mm Table top to spindle nose 150-1000 mm Max spindle speed 8000 rpm Spindle Power 12/18 Kw Max number of tools 30 nos -
Control & Software
- Seimens - SEINUMERIK 828D
- Fanuc – Oi Mate TF
